High Frequency Hydraulic Double Head Welding Machine For Leather / Plastic Sheet Emboss

Shenzhen Hongwei High Frequency Technology Co., Ltd.

High Frequency Hydraulic Double Head Welding Machine For Leather / Plastic Sheet Emboss

Brand Name : Hongwei

Model Number : HW-HW5KDH

Place of Origin : Shenzhen

MOQ : 1 Set

Price : USD 3000~5000

Payment Terms : L/C, T/T

Supply Ability : 30 Sets

Delivery Time : 30 Business days

Packaging Details : Plywood Export Package

Power Supply : 3 Phrase, 380V/50 Hz

Drive Type : Hydraulic

Construction : DeskTop

Application : Blister Packing, Plastic Sheet/Leather Embossing

Dimensions : 1720 X 1100 X 1500 mm

Weight : 500 Kg

Warranty : 12 Months

Contact Now

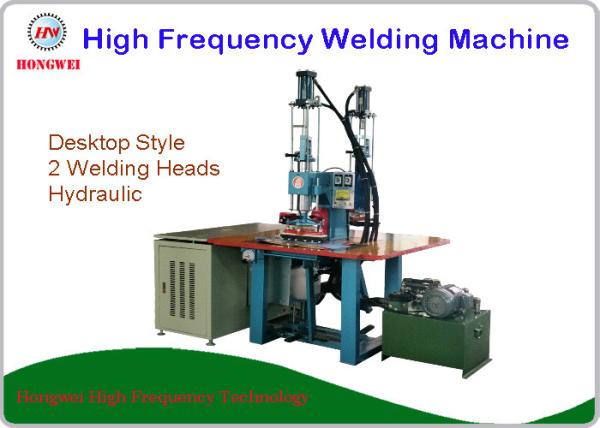

Dual Head HF Welding Machine with hydraulic press for Leather or Plastic Sheet Emboss

High Frequency Hydraulic Double Head Welding Machine For Leather / Plastic Sheet Emboss

  • Two welding heads, two Manual Trays
  • The welding time can be set up respectively for each welding head
  • Pre-set time, Inter-lock mechanism, alternate operating welding heads
  • PLC-based Control, Inter-lock mechanism, alternate operating welding heads
  • Adopting High Q-value Oscillator tube, Stable and reliable output
  • Pneumatically or Hydraulic driven machine saves time and labor, excellent coherence and easy operation
  • Adopting high sensitive anti-spark device, avoiding damaging mould
  • Highly precise temperature control ensures coherent welding
  • High quality Imported Key components and parts
  • Dual guide bar construction, High precision, flexible operation
  • Pry-bar toggle mechanism increase pressure, coherent output and saving time

High Frequency Hydraulic Double Head Welding Machine For Leather / Plastic Sheet Emboss

Hydraulic Press

Model HW-HW5KDH HW-HW8KDH
Power Consumption 5 KW 8 KW
Power Supply 380 V 380 V
Input Power 9 KVA 13 KVA
Rectifier Silicon Diode Silicon Diode
Oscillator Tube 7T85RB 7T69RB
Max. Pressure 1000 Kg 1500 Kg
Max. Gap between Electrodes 160-200 mm 160-200 mm
Welding Head Travel 60 mm 60 mm
Plate Size 350 X 700 mm 450 X 800 mm
Temperature range 0-300 C0 ( adjustable) 0-300 C0 ( adjustable)
Time Adjustment 0~10 S ( Adjustable) 0~10 S ( Adjustable)
Dimensions 1720 X 1100 X 1500 mm 1800 X 1230 X 1520 mm
Net Weight 450 Kg 500 Kg

High Frequency Hydraulic Double Head Welding Machine For Leather / Plastic Sheet Emboss

PVC (and materials contains PVC more than 10%), PET, PETG, APET, GAG, PU, TPU, EVA and cardboard

Toothbrush, Battery, Stationery, Food, Medical Instruments, Toys, Small hardware, Electronics parts and finished products, Automotive parts, Household applications, Cosmetics and other cardboard and plastic blister package, Such as Injector, Solid plastic, Model Vehicle, Clipper, Flashlight, Battery, Spark Ignition Plug, Lipstick, Coat Hook, Cleaning Balls, Razors, Correction Fluid, Pencil and the like.
